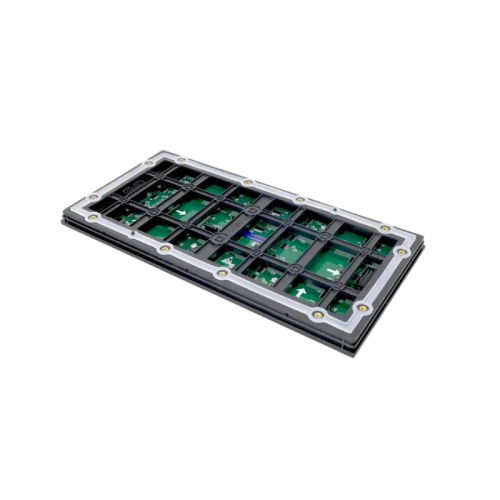

Specification Module Lux-in LED P125LI38
The Module Lux-in LED P125LI38 is a high-resolution LED display module with a pixel pitch of 1.25mm. It is designed for indoor applications and offers excellent image quality and clarity. The module features advanced technology and precise manufacturing to deliver stunning visuals.
Key Features of the Lux in P1.25 Module:
- Pixel Pitch: 1.25mm (pixel spacing)
- Suitable for indoor installations
- High-resolution display
- Superior image quality and clarity
- Advanced LED technology
- Precise manufacturing for optimal performance
Lux Vision is the manufacturer of the Module Lux-in LED P125LI38. We are known for our expertise in LED display solutions and have a reputation for delivering high-quality products. With their commitment to innovation and reliable performance, Lux Vision ensures that their LED modules meet the industry’s standards and customer expectations.
For more detailed technical specifications and information about the Module Lux-in LED P125LI38, please visit the official website of Lux Vision or contact our sales team directly.
|
Cabinet |
|
| Pixel Configuration | SMD 3-IN-1 LED |
| Pixel Pitch | 1.25 mm |
| Dimensions (W × H × D) | 320mm x 160mm x 15.1mm |
| Resolution | 256 x 128 = 32768Dots |
| Pixel Density | 640 000 pitch/m2 |
| Module Weight | 0.28kg± 0.05kg |
| Maintenance Method | Front maintenance for all components |
| Protection Level | Front protection level IP50 |
| Display | |
| White Balance Brightness | ≥ 600 cd/m² |
| Color Temperature | 3000 K to 10000 K adjustable |
| Viewing Angle | Horizontal 160°, vertical 160° |
| Contrast Ratio | ≥ 3000:1 |
| Color Uniformity | ≤ ± 0.003Cx，Cy |
| Brightness Uniformity | ≥ 97％ |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Processing Depth | 16 bit |
| Display Color | 281 trillion |
| View Angle | Horizontal 140°±10 – Vertical 130°±10 |
| Power | |
| Power Supply | 110~220 VAC ± 15% |
| Max. Consumption | Max ≤ 631 W/m2 |
| Average Consumption | ≤ 418.5 W/m2 |
| Maximum Current | 2.8A±0.3A |
| Input Voltage |
4.8-5.5v |
| Working Environment | |
| Working Temperature | -20-50 ℃ |
| Working Humidity | 10%~80%RH |
| Storage Humidity | 10%~80%RH |
| Storage Temperature | -20~60 ℃ |
| General | |
| Lifespan | Lamp 100,000 hours |
